GA04 Gravel Frameset (Alu Alloy | Disc Brake | Thru-Axle | Raw Polish)

The WEAPON GA04 is our latest-generation best Aluminum Alloy gravel Frameset , engineered to deliver greater versatility, cleaner integration, and uncompromising performance.

Features:

• – Premium Lightweight Aluminum : Lightweight, stiff and built for years of performance.
• – Full Carbon Gravel Fork: Reduced weight with superior vibration damping and steering precision.
• – Fully Internal Cable Routing : Clean aesthetics, better aerodynamics and lower maintenance.
• – BB68 Threaded Bottom Bracket: Easy servicing, improved durability and creak-free performance.
• – UDH Compatible Dropout : Universal compatibility for modern and future drivetrains.
• – Dropped Chainstay Design : More tire clearance- up to 50c, shorter rear end and sharper handling.
• – Flat Mount Disc Brake: Powerful, reliable braking with modern integration.
• – Multiple Mounting Points : Integrated mounts allow easy installation of Frame bags, Bottles, Accessories Bikepacking gear and more.

Every detail of the WEAPON – GA04 is designed with one goal in mind—giving you a best Aluminum Alloy gravel Frameset that’s lighter, more capable, and ready for any adventure.

FRAME SPECIFICATION:

Frame Material	T6061 aluminum alloy
Headset	IS 41.8mm / 52mm – 28.6mm (Included)
Seat Post	OD: Ø27.2mm (Not included)
Seat Clamp	ID:  Ø31.8mm (Included)
Standard Movement Box/ BB	BSA 68mm, English Thread.
Cable Routine	– 2 nos Inner cabling holes on the downtube. – 1 for Front derailleur cable. – 1 for Rear brake and Rear derailleur cable.
Tyre Clearance	Up to 700 x 50c
Brake mounting	Standard Flat-mount Disc Brakeset Caliper (34mm spacing)
Weight	Frame – 1650g (Size M)
Hub Spacing / Wheel mounting	Rear -142mm  / OD: Ø12mm Thru-axle mounting.

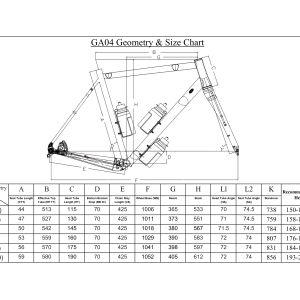

Additional Info	– 4 nos* Bottle holder mounting. – Front and Rear 12mm alloy thru-axle included – Customized Replaceable Derailleur Hanger.  –Frameset Geometry and size Chart as last product display photo. – OD – Outter diameter, ID – inner Diameter.

FORK SPECIFICATION:

Fork Material	Carbon Fiber T700
Fork Steerer	Length: 300mm Top: 1-1/8 Inch (Ø28.6mm) Tapers down to 1-1/2 Inch (Ø39.8mm).
Fork Rack	Rack:46mm
Cable Routine	Inner cable routing
Brake mounting	Standard Flat-mount Disc Brakeset Caliper (72mm spacing)
Hub Spacing / Wheel mounting	Front: 100mm / OD: Ø12mm Thru-axle mounting.
Tyre Clearance	Up to 700 x 50c
Weight	Fork  – 490g (Uncutted).
Additional Info	– 3 nos mounting points on each blade side.

For more gravel frameset options, simply click our  Gravel Frameset Product Line.

To have the best riding experience, build your gravel bike with our featured All-in-one Gravel Bike / Road Bike Groupset Packages.

Want to see more full bike build photos? simply click our Instagram Page.

Size	XS(44), (S)47, (M)50, (L)53, (XL)56, (XXL)59
